液氮產生設備
液氮產生設備
空冷／水冷 液氮產生設備
EMP-07A ／ EMP-07W
特征
?LN2 Production Capacity
8L／day（60Hz）
6L／day（50Hz）
?Air Processing Capacity
5.2m3／day
空冷／水冷 液氮產生設備
EMP-14A ／ EMP-14W
特征
?LN2 Production Capacity
14L／day（60Hz）
14L／day（50Hz）
?Air Processing Capacity
5.2m3／day
液氮產生設備
EMP-20W
特征
?LN2 Production Capacity
20L／day（60Hz）
19L／day（50Hz）
?Air Processing Capacity
13.0m3／day
氮?dú)庵苽錂C(jī)器

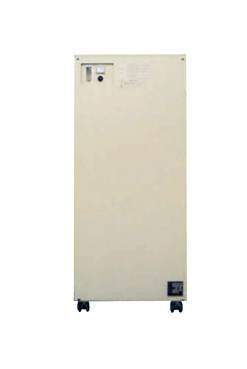

GN-10i ／ GN-15i
氮?dú)庵苽錂C(jī)器（PSA）
| GN-10i | GN-15i | |
|---|---|---|
| Purity of Produced Gas | 99%（N2+Ar） | |
| N2 Max. Flow Rate | 10NL／min | 15NL／min |
| Pressure | 0.2MPa | |
| Dew Point | ≦-60℃ | |
| Ambient Temperature | 5?40℃ | |
| Relative Humidity | 10?80%RH | |
| Dimensions（W×D×H） | 400×460×900mm | 460×520×1015mm |
| Weight | Approx.60Kg | Approx.90Kg |
| Power Supply | 100VAC 1 phase | |
| Power consumption（50Hz／60Hz） | Approx.0.4kW | Approx.0.8kW |
| Breaker capacity | ≧15A | ≧20A |
IM-120
氮?dú)庵苽錂C(jī)器
(Membrane Separated)
| GN-10i | |
|---|---|
| Type | Common for all types |
| Pressure | 0.2MPa |
| Flow Rate | 5?20NL／min |
| Oxygen | ≦1.2% |
| Dew Point | ≦-50℃ |
Under atmospheric pressure：
| Pressure | 0.5MPa?1.0MPa |
|---|---|
| Flow Rate | ≧120 N?／min |
| Oxygen | ≦1.2% |
| Dew Point | ≦-17℃（With refrigerator type dryer） |
| Condition of Air | Oil-free |
※With air supply type, additional space to install nitrogen gas generator (membrane separation)
is necessary. The dimensions are W150 x D300 x H800 mm, and the weight is 19kg.
選項
Automatic supply system
Configuration
●Capacitance Type Liquid Level Detector
●Adaptor for Supply Container
●Level Indicator Box
●Liquid Level Detector Cable (Max. 10 m)
●Annealing Tube with Simple Insulation (Max. 10 m)
※Capacitance type liquid level detectors and the adaptors will be designed to fi t users' containers.
※Automatic supply system cannot be attached to some types of containers or places.
※Capacitance type liquid level detectors might cause noise depending on containers. Please contact us about the container's speci cations.
RKE1500B1-V
Cooling Water Circulator(Unit Type)
【For All Models】
| RKE1500B1-V | |
|---|---|
| Measurable Range | 0?25% O2 |
| Dimensions | Ｗ400×Ｈ850×Ｄ966mm |
| Weight | 96Kg |
| Power Supply | 200 VAC 3 phase |
| Power consumption | 2.3kW（50Hz）／2.4kW（60Hz） |
| Breaker capacity | ≧15A |

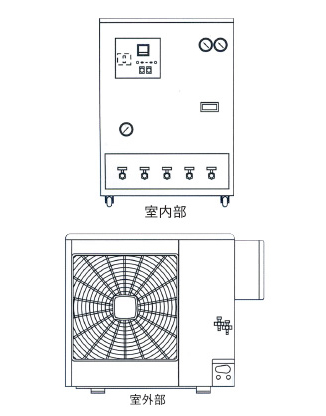

KCW-2S／3S
Cooling Water Circulator(Separated Type)
| KCW-2S （【1】EMP-07W、EMP-14W） |
KCW-3S （【2】EMP-20W） |
||
|---|---|---|---|
| Indoor | Dimensions | Ｗ600×Ｈ880×Ｄ550mm | |
| Weight | 87Kg | ||
| Outdoor | Dimensions | Ｗ792×Ｈ600×Ｄ300mm | Ｗ1100×Ｈ800×Ｄ315mm |
| Weight | 52Kg | 70Kg | |
| Power Supply | 200 VAC 3 phase | ||
| Power consumption | approx.2.38kW（50Hz）／ approx.2.69kW（60Hz） |
approx.3.33kW（50Hz）／ approx.3.82kW（60Hz） |
|
| Breaker capacity | ≦30A | ||
※The installation fees vary depending on areas or places. Please contact us for detail.

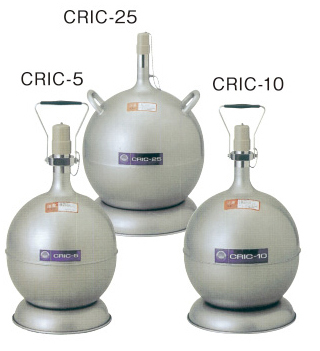

CRIC-5／10／25
Liquid Nitrogen Storage Vessel CRIC Series
| CRIC-5 | CRIC-10 | CRIC-25 | |
|---|---|---|---|
| Capacity | 5ℓ | 10ℓ | 25ℓ |
| Dry Weight | 3.5Kg | 6Kg | 13.5Kg |
| Weight When Filled | 7.5Kg | 14.1Kg | 34.2Kg |
| External Diameter | 266mm | 335mm | 435mm |
| Internal Diameter of Filler Port | 24mm | ||
| Height | 460mm | 550mm | 650mm |
| Evaporation Losses | 0.32ℓ ⁄day(6.4%) |
0.36ℓ ⁄day(3.6%) |
0.5ℓ ⁄day(2.0%) |
MG-1000
Oxygen Density Alarm
| MG-1000 | |
|---|---|
| Measurable Range | 0?25% O2 |
| Alarm Output | Alarm Density Fixed to 18% Contact (2 circuits) and buzzer |
| Operating Conditions | Ambient Temperature 0 - 40℃ Relative Humidity 30 - 80 % (no condensation) |
| Dimensions | Ｗ120×Ｈ120×Ｄ55mm |
| Weight | Approx.500g |
| Power Supply | AC100V |
| Breaker capacity | 13VA |
